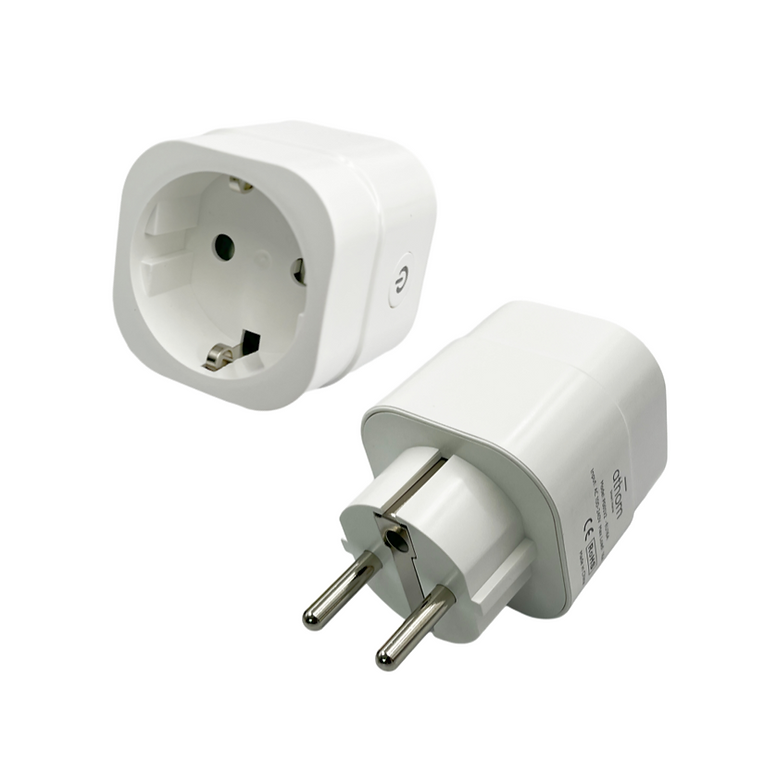

Tasmota socket outlet with consumption measurement. Smarthome stock socket already pre-installed with the Tasmota software. No complicated flashing necessary.

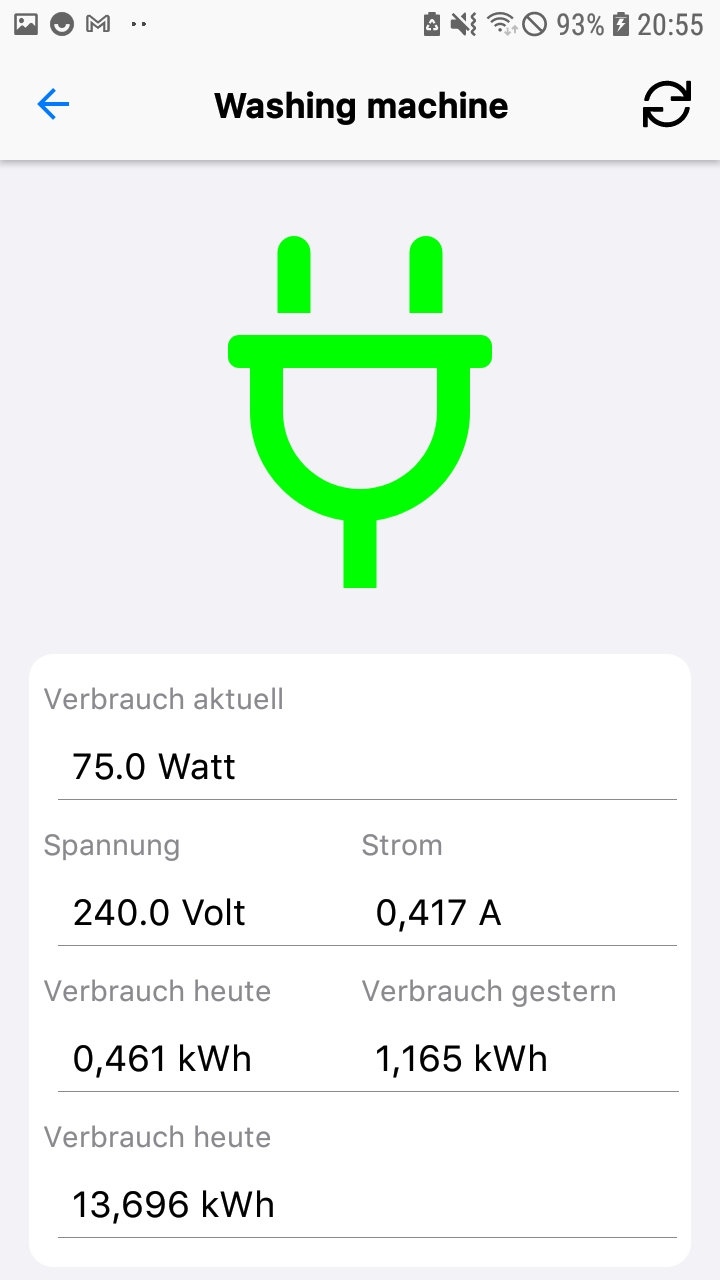

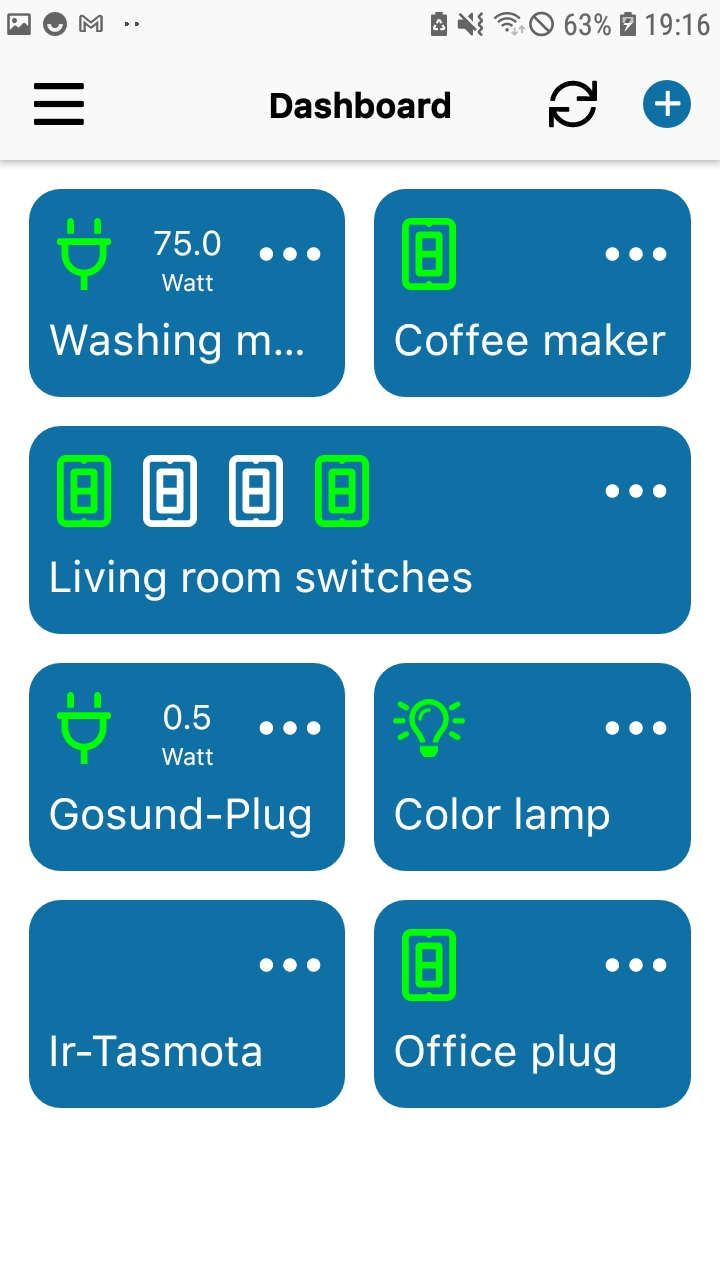

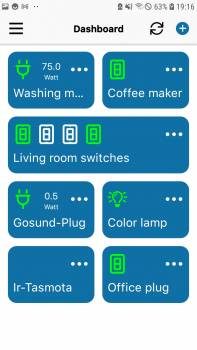

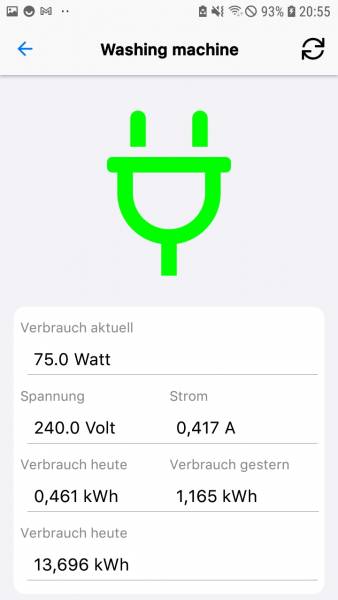

Fully compatible with the official Tasmota OTA server. WiFi smart plug with power measurement, clever TASMOTA software, easy and convenient control with the Tasmotrol app for iOS or Android, also via MQTT, web UI, HTTP or serial.
Pre-flashed TASMOTA32C3 EU plug consumption monitoring
The latest full version
Fully compatible with the official Tasmota OTA server
Pre-configured GPIO plug and play
Pre-flashed before assembly
Built-in ESP32C3 chip with 4M Flash
Built-in HLW8032 performance statistics chip

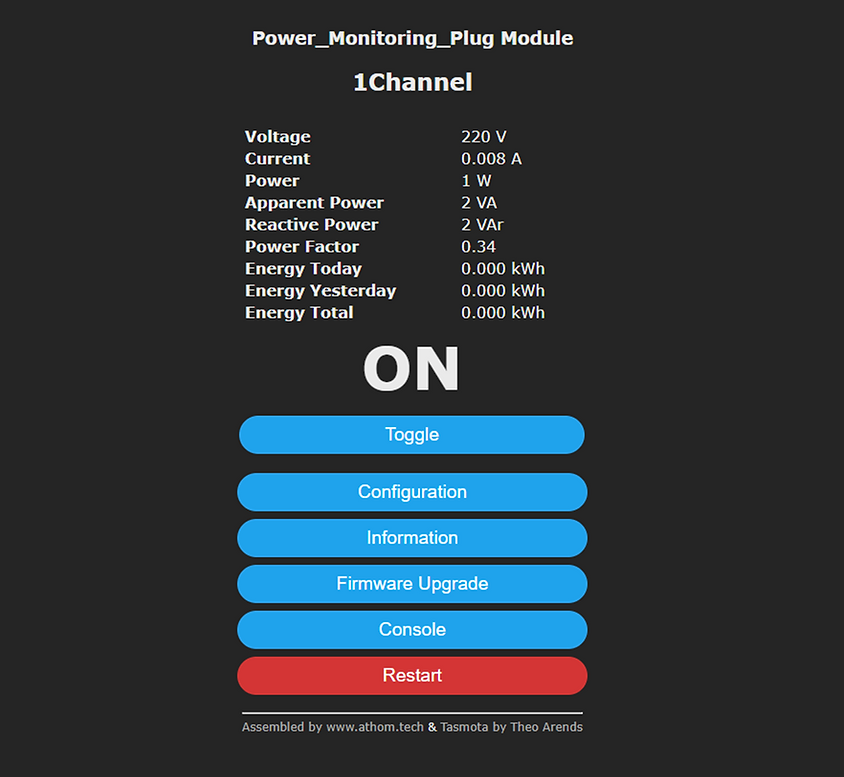

Full local control with fast setup and updates. Control via MQTT, Web UI, HTTP or serial. Automate with timers, rules or scripts. Integration with home automation solutions. Incredibly expandable and flexible.

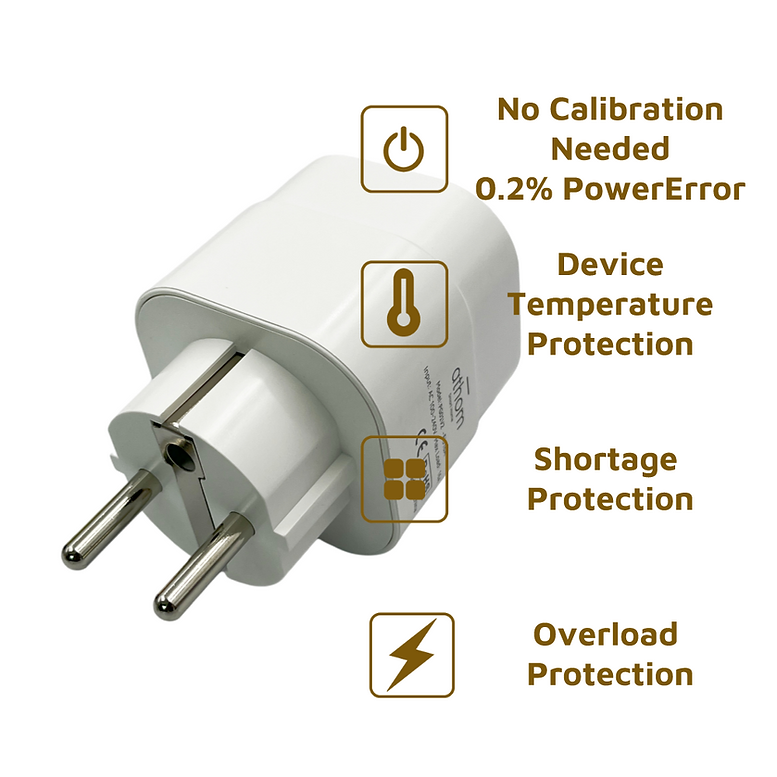

Integrated HLW8032 chipset for consumption monitoring, NO calibration required,
Active power measurement error is 0.2%.
The measurement error of the active current is 0.5%.
The measurement error of the effective voltage is 0.5%.
Specification:
- Eingangsspannung：100-240VAC 50/60Hz
- Current rating：16A(Max)
- Rated power：3680W
- Produktgröße：L51*W51*H85mm
- Standard：EU
- Wireless standard：IEEE802.11b/g/n,2.4GHz
- Housing color：White
- Operating temperature：-20℃～+50℃
- Plastic material: ABS+PC
- Fire protection class: 94-V0
- Package size：62*62*86mm
- Weight：80g
GPIO3 ：Button
GPIO5 ：Relay
GPIO6 ：LedLinki
GPIO20：CSE7766 Rx
Further information about Matter:
https://tasmota.github.io/docs/Matter
Website of the manufacturer: athom.tech
